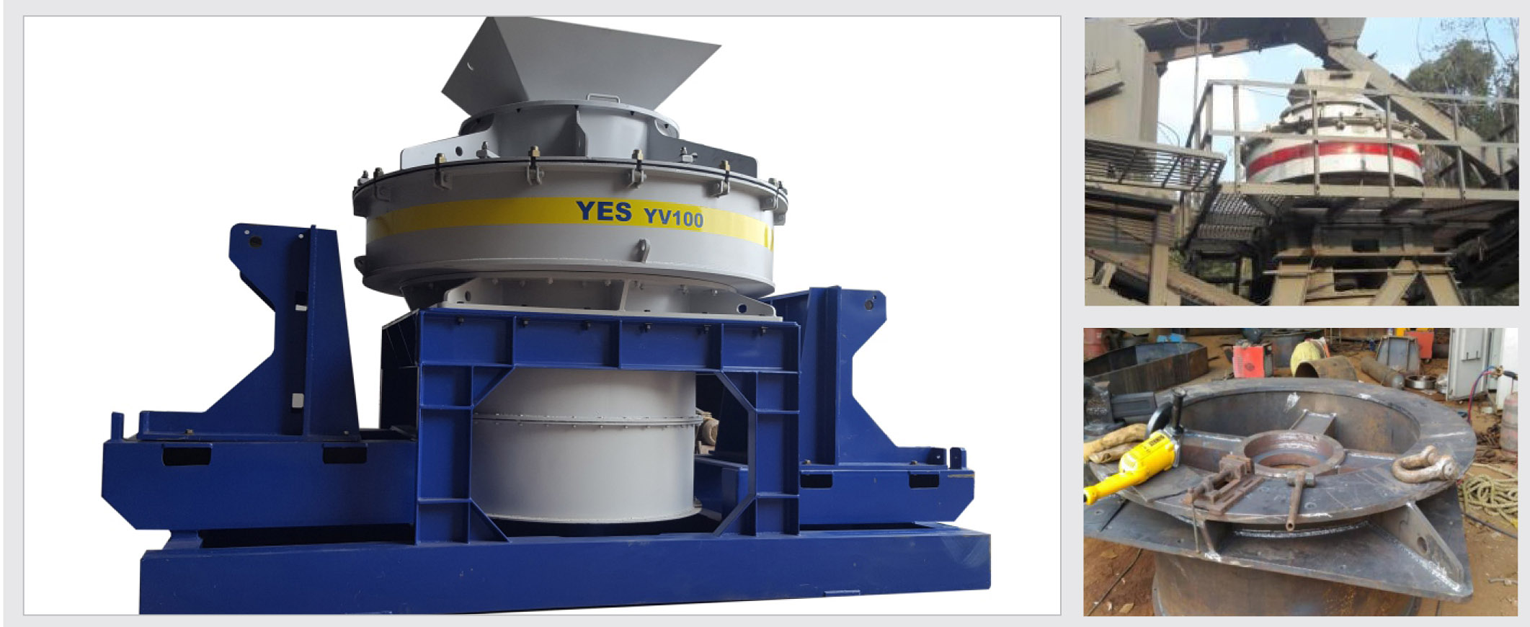

VSI Crushers
YES VSI CRUSHERS are high speed crushing machines, which use a closed type rotating impeller in a horizontal plane performing like a pump for pumping solids. The secondary-crushed material fed in the center of the rotor is accelerated and is allowed to hit an annular rock-shelf encircling the rotor with a very high kinetic energy. The impact generated breaks the hitting rock into pieces along its natural fault-lines. The end product thus produced by this 'Rock-on-Rock' crushing principle is cubicle in shape and meets the specifications of well graded construction aggregates, and mineral fines & powders.
The impact crushing in VSI is proven to be most efficient method to produce fine aggregates, i.e., crushed-sands. The welldesigned processing circuits by YES with its VSI crushers produce crushed-sands from hard rocks meeting the gradation standards set forth for concrete sands and plaster sands.
The rock-shelves can be replaced by steel-anvil type crushing chamber for crushing lesser abrasive rocks and minerals. The 'Rock-on-Steel' crushing with steel-anvil gives out higher reduction ratio and a higher percentage of desired product size in single pass.
YES VSI is a versatile tertiary/quaternary crusher for production of concrete aggregates, asphalt mixes and crushed-sands, and for pulverizing & grinding of minerals.
Features And Benefits
- Heavy-duty fabricated construction for durability.
- Fully sealed drive cell with heavy-duty spherical roller bearings.
- Advanced 3-port rotor design, fully balanced for vibration free operation.
- Delivers product with cubicle particle shape and consistent gradation.
- Rock-shelf crushing chamber for high abrasion material, minimizing operating costs.
- Anvil rings for low to medium abrasion materials for high reduction ratio where required.
- Suitable designs for shaping, crushing, pre-grinding and pulverizing applications.
- Wide range of throughput capacity with single and twin motor drives.
- Low investment and operating costs per ton of production.
- Easy to operate and simple maintenance procedures.
- Delivery includes fully assembled machine complete with integral base, motor-mounting frame, drive pulley, V-belts, support skid, feed chute and discharge chute.
Technical Specification
| Model | Max.Feed size -mm | Rotor size -mm | No of Ports | Drive Motor Kw | Max.Throughput Capacity - TPH | RPM |
|---|---|---|---|---|---|---|
| YV 60 | 25 | 600 | 3 | 45 - 55 | 55 | 1200 - 1700 |
| YV 75 | 40 | 750 | 3 | 90 - 110 | 120 | 1200 - 1700 |
| YV 90 | 40 | 900 | 3 | 132 - 200 | 225 | 1200 - 1700 |
| YV 100 | 50 | 1000 | 3 | 200 - 400 | 400 | 1200 - 1700 |
