Installations
Our plant installations and equipment packages are built using top quality materials and latest design trends. They are aimed to fulfill hundred percent product needs of the customer with optimal production cost per ton.
A few of our recent plant and equipment packages are illustrated here

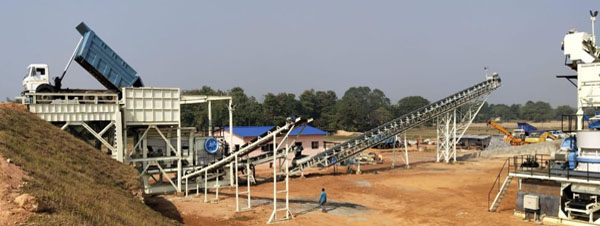

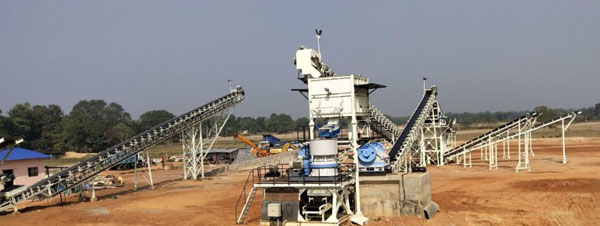

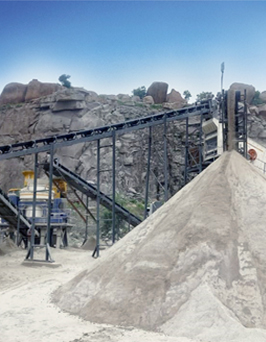

- Customer :V. Nirman
- Plant capacity :200TPH, Aggregate & Sand Crushing Plant
- Products sizes :28-18mm, 18-10mm, 10-4mm and 0-4mm with
Principal plant & equipment supply
-
Tertiary VSI Crusher –YV100
-
800mm W x 1.6 m L Vibro feeder, Metal Detector
-
Four deck Vibrating Screen of Size 1800mm Wide x 4800mm Long including 30 kW Drive
-
Belt Conveyors – 6 (six) – 800 / 650 / 500 mm wide
-
Complete Steel Structure
-
Electrical MCCs, cables & Dust Suppression System
- Customer :Sri Balakrishna Road Metals
- Products :20-40mm, 10-20mm, 5-10mm & 0-5mm

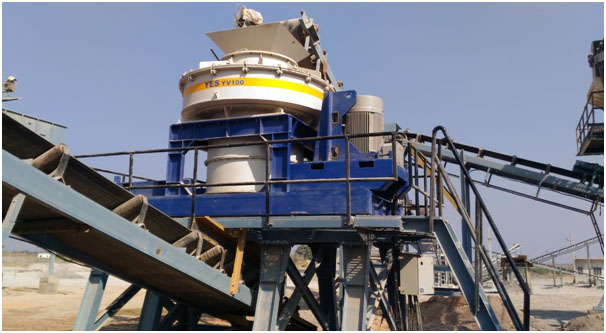

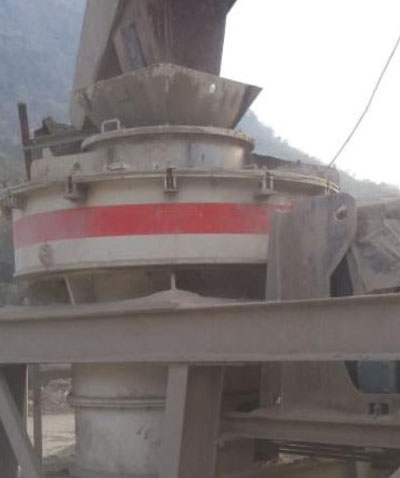

Vertical Shaft Impact Crusher – YV100
- Customer :YMR Constructions
- Products :20-40mm, 10-20mm, 5-10mm & 0-5mm

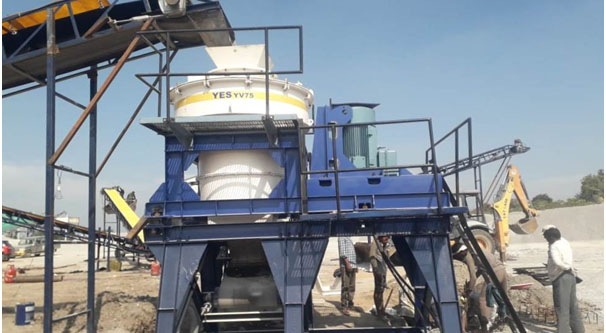

Vertical Shaft Impact Crusher – YV75
- Customer :KSR & Co., Angul
- Products :Jindal Steel Plant
2-Deck Vibrating Screen – 1500 x 4800 mm L & Grizzly Feeder 1200 mm W x 4500 mm L
3-Deck Vibrating Screen – 1500 x 4800 mm L
- Customer :Singh Brothers
- Plant capacity :Primary -200/180 TPH; Secondary: 150 TPH all minus 28 mm
- Plant feed :Blasted & quarried rock of all minus 650 mm (Basalt / Granite)
- Products sizes :28-18mm, 18-10mm, 10-4mm and 0-4mm with GSB (0-63mm) option
- Completed :October 2018
Principal plant & equipment supply
-

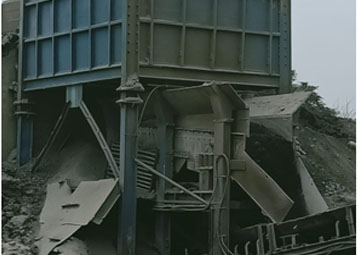

Vibrating Grizzly Feeder of Size 1200 W x 4500 mm Long
-
Primary Jaw Crusher 32” x 44” (1100 x 800)
-
Secondary Cone Crusher –YC180
-

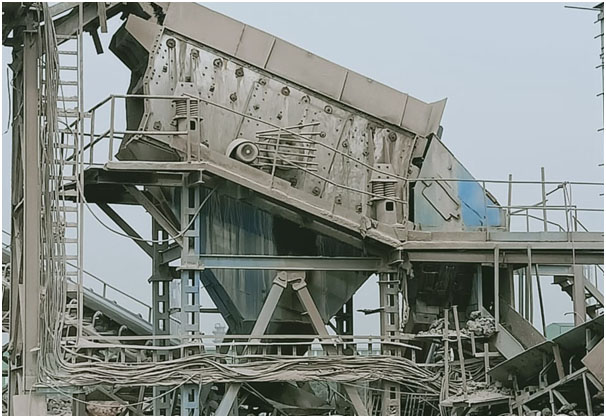

Four deck Vibrating Screen of Size 1800mm Wide x 4800mm Long including 30 kW Drive
-
1000mm W x 1.6 m L Vibro feeders (2) and 800mm W x 2.0m L Vibro-Feeder, Metal Detector
-
Belt Conveyors – 12 (twelve) – 1000 / 800 / 650 / 500 mm wide
-
Setup on the Live Server – Beta Launch
-

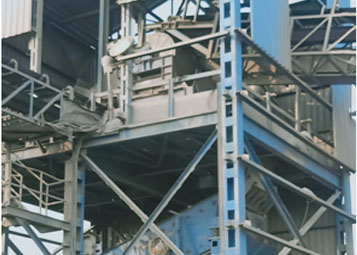

Complete Steel Structure
-
Electrical MCCs, cables & Dust Suppression System
- Customer :Vensar Construction Company Ltd
- Kind of stone :Basalt / Granite
- Plant feed :Blasted & quarried rock of all minus 150 mm
- Completed :December 2017
Secondary Cone Crusher –YC180
Vertical Shaft Impact Crusher – YV35
Vertical Shaft Impact Crusher – YV30
Principal plant & equipment supply
-
Secondary Cone Crusher –YC180
-
Vertical Shaft Impact Crusher – YV30 (Rotor Dia 760 mm)
-
Vertical Shaft Impact Crusher – YV35 (Rotor Dia 900 mm)
-
Metal Detector
- Customer :SS Rock Products
- Plant feed :Blasted & quarried rock of all minus 650 mm
- Completed :January 2019

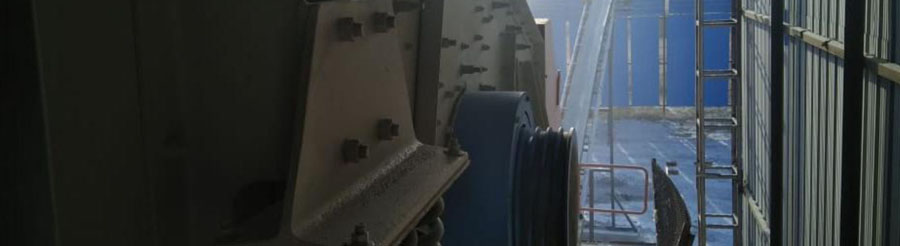

Primary Jaw Crusher 32” x 44” (1100 x 800)
2-Deck Vibrating Screen – 1500 x 4800 mm L
Principal plant & equipment supply
-

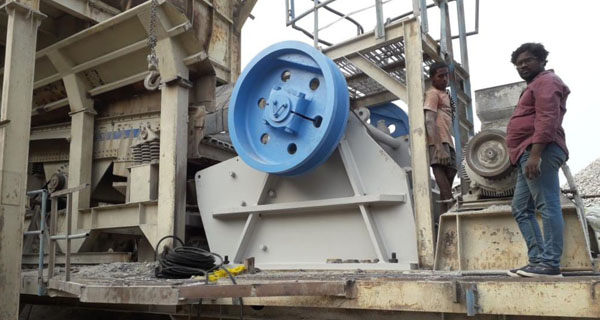

Primary Jaw Crusher 32” x 44” (1100 x 800)
-
2-Deck Vibrating Screen – 1500 x 4800 mm Long
-
Screw Classifier – Dia 1200 x 8500 mm Long
-
Steel Skid for Cone Crusher
-
Vibro-Feeder - 800mm W x 2000 mm Long
- Customer :GCS Crushers
- Kind of stone :Basalt / Granite
- Completed :July 2018
4-Deck Vibrating Screen of Size 1800mm Wide x 4800mm Long
- Customer : K. Seshagiri Rao & Co.
- Kind of stone:Basalt / Granite
- Completed:February 2019
Principal equipment supplied is Under Erection:
-
Vibrating Grizzly Feeder of Size 1200 W x 4500 mm Long
-
2-Deck Vibrating Screen – 1500 x 4800 mm Long
-
3-Deck Vibrating Screen – 1500 x 4800 mm Long
