Jaw Crushers

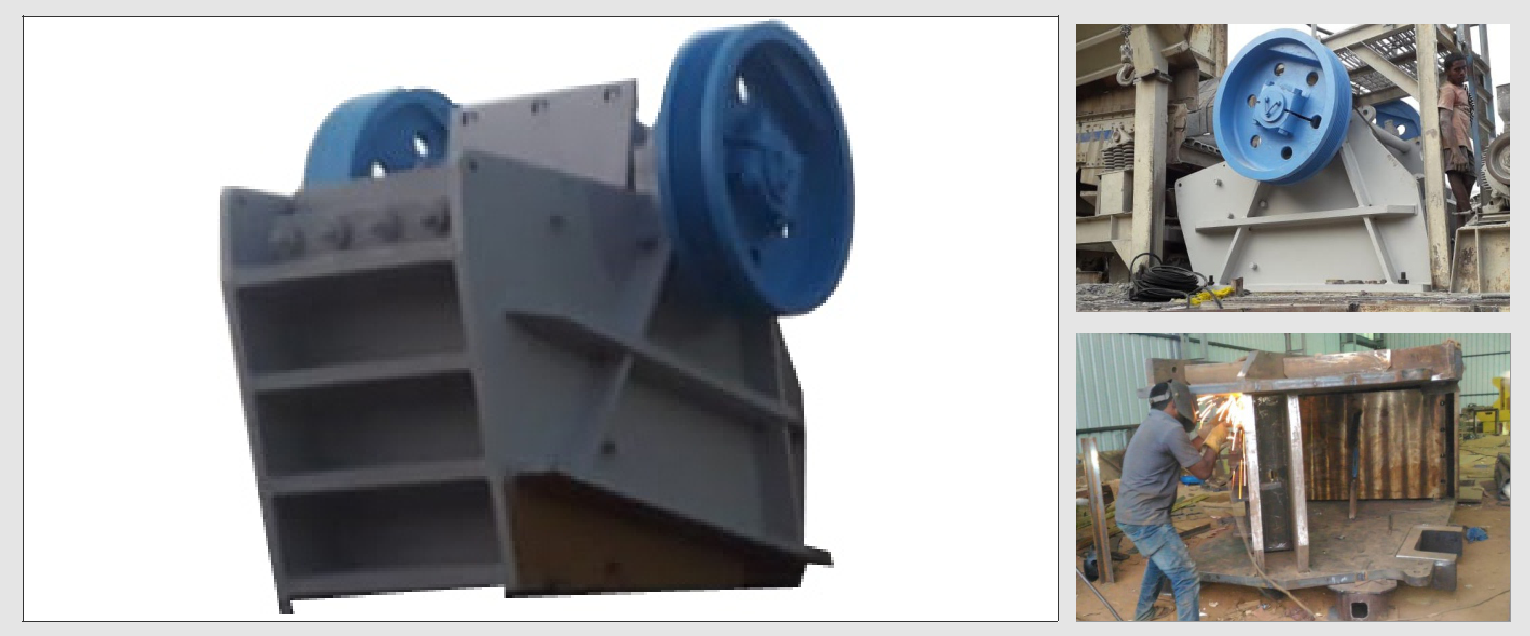

YES JAW CRUSHERS are heavily built single toggle primary crushing machines. They are designed to crush 'run-of-mine' hard rocks and mineral ores. The rugged and heavy construction will make them best suited for continuous crushing application in any harsh mining environment.
The precise machine geometry generates a high crushing force between the jaws entirely dedicated to crush hardest of hard rocks. A larger feed opening combined with larger nip angle offers a high reduction ratio delivering a high percentage output size at desired closed side setting.
The YES JAWS are manufactured to high-quality norms using best of the engineering materials. They deliver optimized performance with low cost per ton of production.
The compact design is well suited for stationary as well as portable primary crushing stations.
Features And Benefits
- Designed for bigger feed size with larger crushing ratio and no vibratory forces
- Geometry enables increased product output and better shape & distribution
- Effective crushing by compression reducing wear & tear on jaw plates
- Hydraulic adjustment of CSS for different capacity and output sizes
- Fully fabricated-machined heavy duty and stress relieved mainframe
- A high-grade cast-steel swing jaw, heat-treated and precision machined
- A large diameter precision machined alloy steel main shaft
- Grease lubricated heavy-duty self-aligning roller bearings for longer life
- Well balanced cast-steel and machined fly-wheels at drive and non-drive ends
- Long-life and lubrication-free toggle mechanism
- Machined and fully reversible manganese steel jaw plates
Technical Specification
| Model | Feed Opening | Max Feed Size-mm | Capacity at Closed Side Setting in TPH | Drive Motor KW | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 mm | 75 mm | 100 mm | 125 mm | 150 mm | 175 mm | 200 mm | 225 mm | ||||
| YJ 30 | 30” x 20” | 400 | 60-70 | 80-95 | 105-120 | 125-140 | 55 | ||||
| YJ 36 | 36” x 24” | 500 | 90-110 | 120-150 | 155-170 | 180-235 | 75/90 | ||||
| YJ 44 | 42” x 32” | 700 | 130-160 | 180-210 | 220-255 | 270-310 | 320-370 | 365-410 | 110/132 | ||
| YJ 50 | 48” x 38” | 900 | 185-220 | 260-300 | 330-375 | 405-455 | 475-530 | 510-600 | 160 | ||
