Horizontal Vibrating Screens

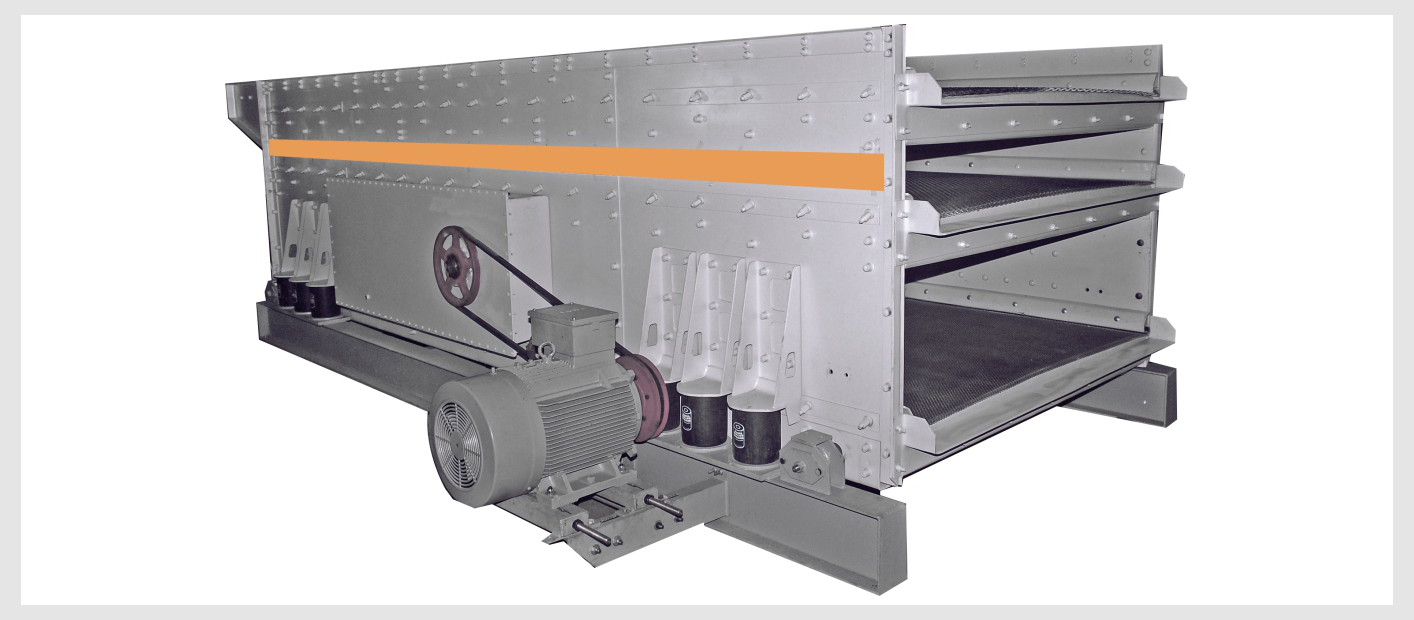

YES HORIZONTAL SCREEN is driven by universal triple shaft vibratory mechanism that develops a powerful elliptical motion across the length and breadth of the screen deck.
The aggressive vibratory force will eliminate plugging and blinding in all modes of material screening operations, wet or dry, ranging from coarse to fine separation of 'easy-to-screen' to 'most- difficult-to-screen' materials.
The prominent feature of the vibrating mechanism is its in-built feature to alter the amplitude and stroke angle for achieving optimal screening efficiency for different materials separation and for varied applications. The frequency of vibration (RPM) too is increased or decreased through an adjustable sheave mounted on motor shaft, to meet specific screening needs.
The 'Huck-Bolt' construction of the mainframe with high quality steel plates is adequately stiffened for a high degree of rigidity. The material screening decks are designed to take high loads and together with mainframe form an exceptionally rigid 'box' to withstand severest of the vibratory stresses.
Features And Benefits
- Unique 3-shaft vibrating mechanism generating elliptical motion.
- Aggressive gyratory force for high efficiency screening.
- Precision & synchronized gear-train mechanism.
- Frictionless spherical roller bearings – screen duty.
- Oil bath lubrication of all bearings.
- Adjustable stroke angle, amplitude and frequency.
- Build for 2-deck and 3-deck screening applications.
- Proven application for fine screening of construction sands.
- Suitable for wet or dry screening or combination of both.
- High screening efficiency.
- 'Huck-Bolt' construction of mainframe.
- High strength deck construction forming a rigid 'box' to withstand high stresses.
- Screening decks suitable for wire-mesh or rubber deck or PU.
- Compact design and low headroom save installation costs.
- Made for stationary plants, portable chassis or trackmounting.
- Long life, easy maintenance, trouble free operation.
- World-class manufacturing quality.
Technical Specification
| Model | Screen Size (mm) | Drive Motor (kW) kW | ||
|---|---|---|---|---|
| Width | Length | 2-Deck | 3-Deck | |
| YS 516 | 1500 | 4800 | 18.5 | 22 |
| YS 616 | 1930 | 4800 | 22 | 30 |
| YS 620 | 1930 | 6100 | 30 | 30 |
| YS 720 | 2240 | 6100 | 30 | 37 |
| YS 820 | 2500 | 6100 | 37 | 37 |
