Gyratory Cone Crushers

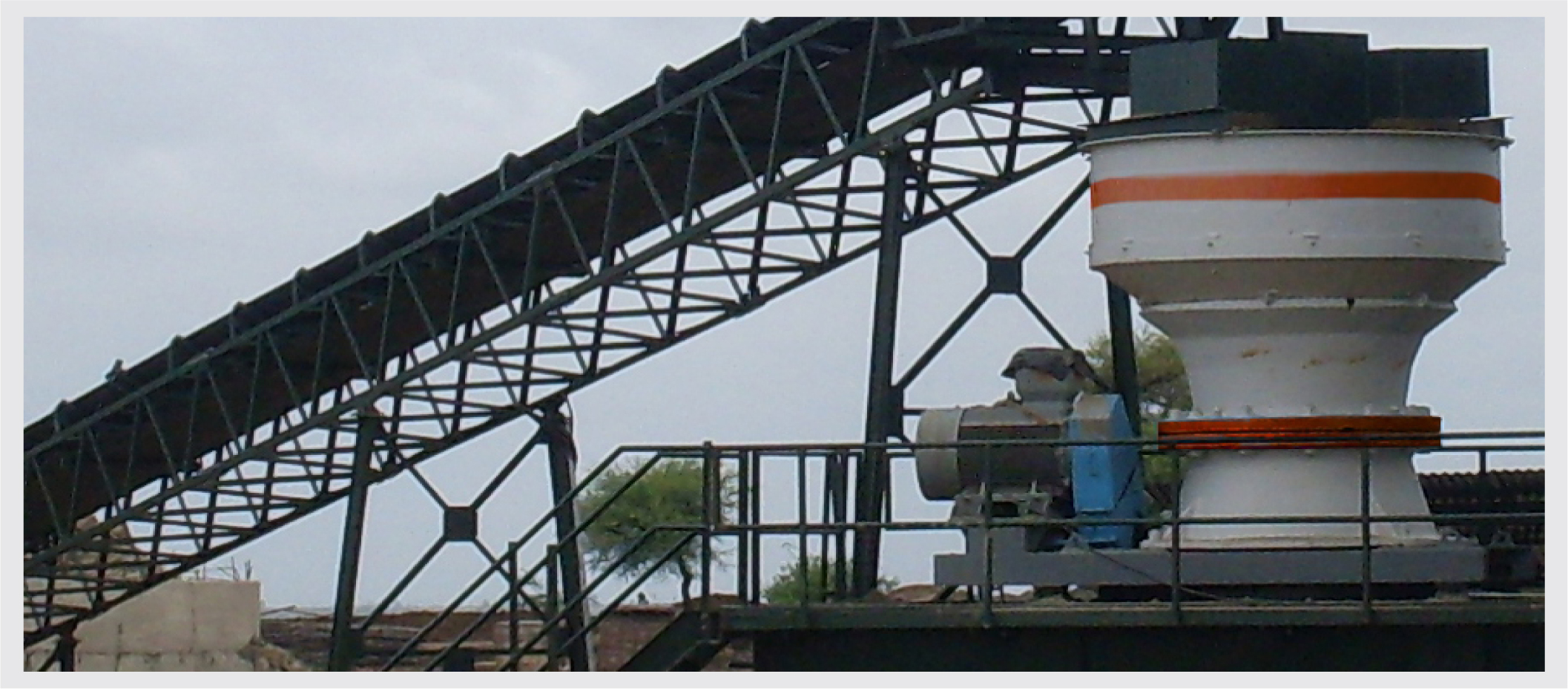

YES GYRATORY CONE CRUSHER is geometrized for bigger feed size and larger capacity in secondary crushing applications. Its steep crushing chamber is profiled for free flow of bigger lumps and slabs and crush them to uniform-sized product. The sturdy construction makes it an ideal choice for handling a variety of materials like very hard granites, basalts and river gravel down to limestones and mineral ores
The mainframe consisting of cast-steel top shell & bottom shell, is liberally sized and robustly built to withstand heavy crushing loads. It accommodates a heavily built main-shaft & core assembly, specially- profiled and well-secured manganese-steel mantle & concave segments, the eccentric and journal bearing assembly with drive gear & pinion and counter-shaft assembly with anti-friction bearings. The crusher incorporates hydraulic support arrangement for lifting/lowering of main-shaft, powered by an independent hydraulic power-pack with push-button controls.
A separate lube-pump in the power-pack provides oil lubrication to the bearings and gear transmission. The swivel type main-shaft bearing at its top support is grease-lubricated by an automated motorized gear-pump. A positive pressure-seal arrangement through an air blower will prevent ingress of dust into rotating parts.
Features And Benefits
- Heavy section cast-steel top and bottom shells to withstand high crushing loads.
- Larger feed opening compared to conventional cone crushers.
- Deep and steep angle crushing chamber for free flow of lumps & slabs – no chocking or packing.
- Special profiles of mantle and concave giving a better nip angle.
- Uniform wear and tear of mantle & concave resulting lower wear cost per ton of output.
- High tensile heat-treated main shaft forging with a shrinkfitted cast-steel core.
- High precision cast-steel eccentric driven by high carbonsteel bevel-gear & pinion with involute teeth.
- Special alloy deep lead-bronze bush bearing of shafteccentric assembly with ample oil lubrication ensures stability and durability.
- Roller bearing counter-shaft housing assembly designed for a larger power transmission.
- Dust seal system with air pressurization by an external blower for effective protection of all lubricated parts.
- A hydraulic power-pack providing hydraulic pressure support system for the main-shaft and oil lubrication to the bearings & gear transmission, complete with safety instrumentation & controls.
- Push-button actuated hydraulic adjustment of closed side setting (CSS) with a tramp-iron release control.
- An automatic high-pressure grease lubrication of spider bearing by a motorized gear-pump.
Technical Specification
| Model | Motor Power kW | Rotor size -mm | Throughput in Tons per Hour (TPH) | ||||
|---|---|---|---|---|---|---|---|
| Closed Side Setting - mm (CSS) | |||||||
| 40 | 45 | 50 | 55 | 60 | |||
| YC180LH | 110 / 130 | 250 / 350 | 220 - 250 | 240 - 280 | 270 - 310 | 300 - 340 | 330 - 370 |
