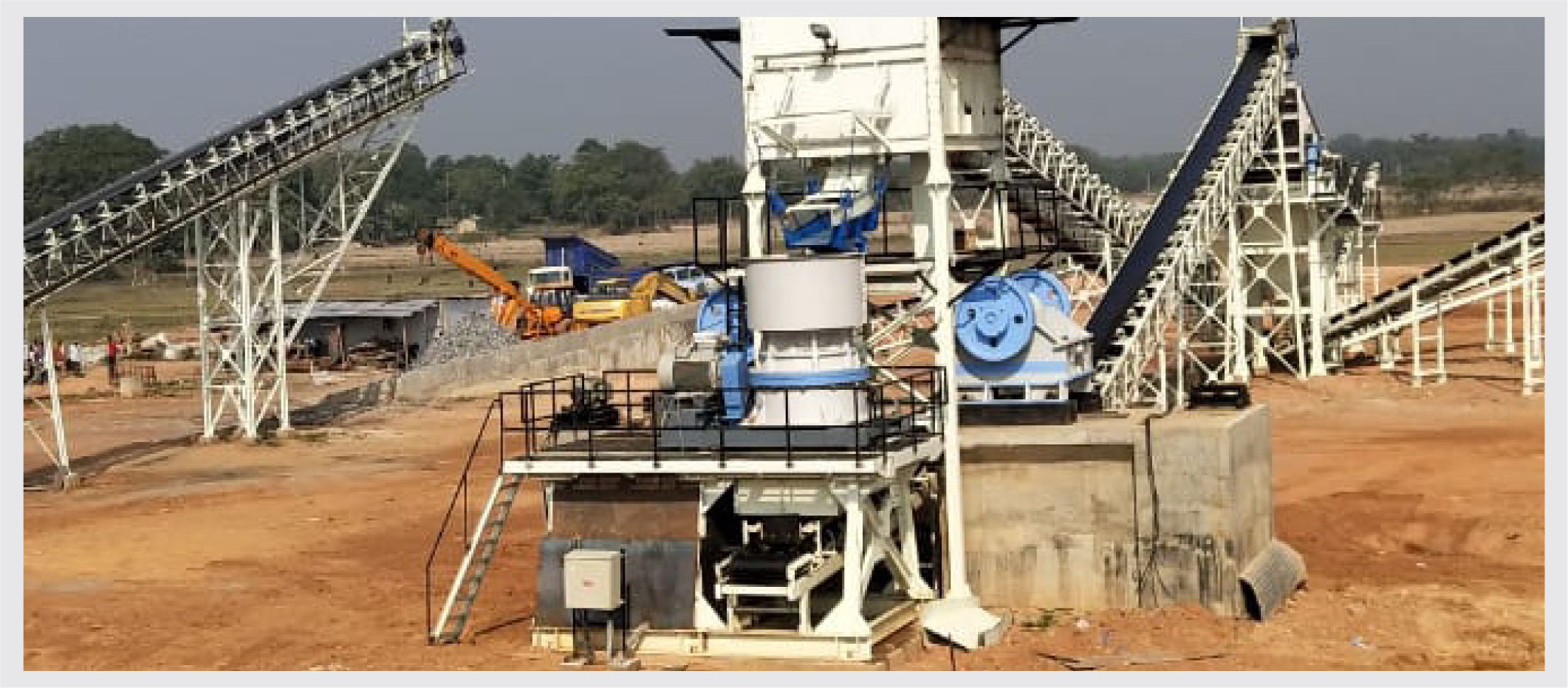

YES SHORT-HEAD CONE CRUSHER is built with anti-friction roller bearings for high performance and for producing uniform, cubical-shaped products in large volumes. The extra heavy-duty roller bearings – inner & outer eccentric and counter-shaft transmission - ensure a long trouble-free working life and efficient power use and low operating costs.
The cast-steel top shell and bottom shell are rugged in shape and strength to withstand high crushing forces. The balanced eccentric cartridge with anti-friction bearings eliminates all unwanted vibrations on the support structure and minimizes foundation costs. The main-shaft is of high-grade alloy forging with a shrink-fitted core to take heavy and combined torsionbending- thrust loads. It is hydraulically supported through a set of bronze & steel wear rings to effectively absorb all the vertical crushing loads. The power transmission through counter-shaft assembly and bevel gear & pinion ensures minimum power loss and maximum power being available for generating a powerful gyratory force to crush the toughest materials.
The hydraulic power-pack with separate motorized gear-pumps with complete automatic safety controls provides a trouble-free air-cooled lubrication for all bearings & power transmission and hydraulic support system for main shaft & a continuous CSS adjustment with tramp-iron release. The top main-shaft swivel type bearing is grease-lubricated by an automated independent motorized grease pump. A combination mechanical and airpressure sealing system will ensure no ingress of dust into powertrain and gyratory inners.
|Model||Motor Power kW||Feed Opening mm||Throughput in Tons per Hour (TPH)|
|Closed Side Setting - mm (CSS)|
|YC180LH||130/160||75||fne bowl||76 - 104||81 - 116||87 - 128|
|115||Middle bowl||88 - 112||98 - 135||106 - 143||111 - 155|
|115||Coarse Bowl||118 - 152||126 - 162||135 - 173||142 - 183|
|195||Extra Coarse Bowl||125 - 161||134 - 171||143 - 182||155 - 193||162 - 210|
